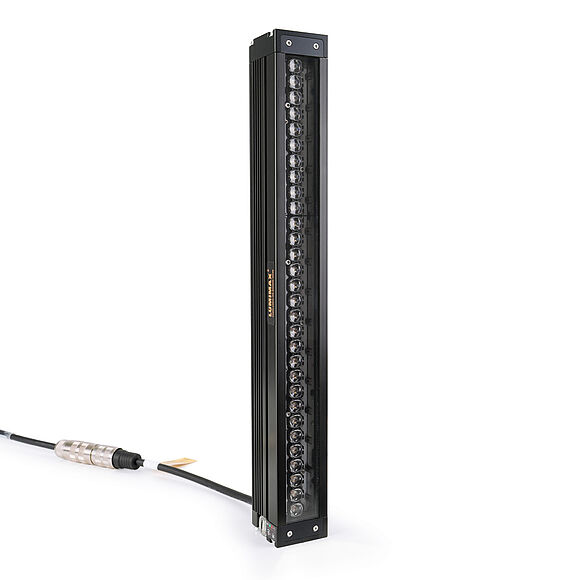

Modular LUMIMAX® LED Bar Lights - For Machine Vision applications
With the powerful modular LUMIMAX® LED Bar Lights test areas can be uniformly illuminated even from distances of more than 1 meter. The Bar Lights with integrated controller technology are available in different configurations for incident and backlight applications.
The modular bar lights expand the portfolio and include now bar lights of up to 2 meters and more for even lager test areas. Thanks to the modular concept, specific sizes can be realized quickly and without additional development costs.
- Up to 1 million lux light output
- Lengths freely selectable in 100 mm increments
- Flexible and space-saving adjustment thanks to compact design and integrated controller
- Attachment optics for optimum focusing of the light
- Robust aluminum housing (IP50)
Light performance of the LBHP series
The specified values refer to a modular LBHP lighting with a 300 mm light area, 16° lenses and white light color (LBHP300(FL)-16-W).
In addition to the version with transparent ALK lens (150° or 120° LED beam angle), numerous accessories are available. Thanks to the smart design, all optics can be changed and combined quickly and easily.
- Attachment lenses with 16°, 23° and 44° beam angles - arranged in the lens array for quick changes
- Lightly satinized diffuser (ALD) to reduce hot spots
- Strong diffuser (ALHD) for highly diffuse incident light
- Polarization filter to suppress reflections
